Twin turbocharged 350 Chevy project


The following 12 pages details the design, selection and fabrication of a twin turbo chevy 350. Was it worth it? -Yes, Reccomend it? - Yes!
A quick summary of what i've learnt:
  • Gearbox - TH700r4 isn't any good over 400bhp. Current box is holding after putting 1400 quids worth of parts in it and building it myself. A 4l80e would be a better choice.
  • Cooling - turbos make heat, If your water rad is marginal - turbos will make it worse. Big oil cooler needed too. Underbonnet heat is high - but not causing any problems.
  • Even on low boost - try to at least consider intercooling in your design and planning
Its been on the road for about 18 months and still not had the urge to crank it up from 6psi boost so far.

Research

I've spent many months already looking at different options - here's what's i've already considered:
Now that i've got fuel and spark all controlled by Megsquirt, I can now start thinking about turbo or supercharging. I could just drop in a big block, but they are big and heavy - plus these seems much more fun.

You have probably read this a million times, but I would also recommend reading Corky Bell's Maximum Boost book; Not just to understand about turbos, but also intercooling, plumbing, wastegates and lots of other general info along with some good photo's to show whats possible.

Supercharging?

Using a Wieand/Holley 142 Roots blower - for my application (4x4) - A roots blower would be ideal due to its instant boost and simple installation. These are mainly geared up to carb usage, so i needed a way of using one of these with fuel injection. What i needed to know was: Is there enough room to machine injectors into the Weiand manifold?

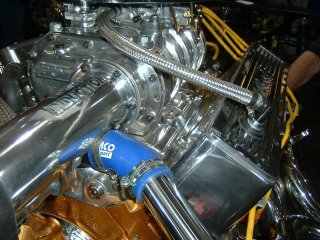

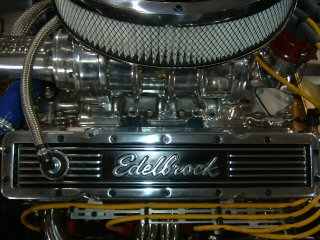

Problem was, I had never seen anyone else attempt it and I had never seen one of these blowers in person - until I went to the kit car show:

It looks like there's enough room (JUST) to machine injector bungs into the manifold, so I emailed holley and asked if there superchargers work OK on a dry charge - Answer was a resounding "No" - the fuel is used to cool and lubricate the rotors. I did consider placing the injectors into a 1" spacer between the carb and blower, but after considering how much work had already gone into my existing manifold (which had been done twice) I decided to move away from this idea. I also get the feeling that these baby 142/144 blowers are just for the bolt on / hod rod boys who want a simple solution. They are horribly inefficient, I also get the impression that fuel consumption goes through the roof with these.

Ive also looked at centrifugal superchargers (Paxton, Vortech etc), these offer a much simpler installation, but with downside that they offer the worst of both worlds; they consume power all the time and you dont get full boost until max rpm.

Turbo charging?

This seems the most flexible and powerful - but the most difficult to implement, both in terms of obtaining the right turbo's, fabrication, plumbing and setup.
I'm a little worried about the amount of heat that's going to be under the bonnet, Chevy's aren't exactly the coolest running engines on the planet, but i think I should be able to manage that effectively

Single or Twin turbo?

The decision for single or twin turbos comes down to one thing: What can I easily and cheaply get hold of, whatever i find first will be fitted. Essentially i need a pair of turbos that were originally fitted to at least a 2.5 litre engine.

V8's lend themselves to twin turbos due to packaging. Fitting a single turbo requires cross over pipe; in a 4x4 i cant go underneath due to the front axle (which already hits the sump), I could go over the top, but that's lots of unnecessarily hot exhaust pipe bellowing heat all over the engine bay.
Sourcing a pair of smaller turbo's in the UK seems an easier task than finding a big single. some tt pictures?

Boost pressure

Boost pressure is largely determined by your static engine compression and inlet charge temperature, a European NA engine will typically be running in the low 9's (Yes, I know i'm running a yank engine, but mines running 9.25:1 CR)
You will probably want to turn the boost pressure up once you get everything working, so my spreadsheet has entries for a range of boost pressures, which makes plotting the points on the compressor map much easier, you dont want to select a turbo thats only good for 8psi and have to junk it all to run 12psi or more.

Turbo Sizing

I know that a pair of Garrett T3's from a factory 2.4 liter Ford Thunderbird Turbo Coupe, Which have a .60 A/R compressor and .63 A/R turbine will work, problem is that you don't see many(if any) of that spec turbo in the UK.
So far I haven't come across a diy scrapyard turbo conversion using turbo's easily sourced in the UK (Read:Ebay!). So I need to understand my flow requirements and plot that against potential candidates.
I'm not going to re-invent the wheel and explain all the formulas as these are covered in excellent detail elsewhere, My calculations are based on the following document by Great Ape Racing, essentially you need to know how much air your engine requires and then how much extra air you need to force in based on your desired boost pressure. Once you know that, you can start plotting your points on a compressor map.
Here's the calculations for my Chevy, using my Excel Spreadsheet that I developed from the formulas presented in the document above: (Also includes a handy garrett Trim calculator)

These figures are for each turbo, i.e. the figures are halfed, we have cfm,lbs and Kg/s for the different manufacturers. I'm not 100% sure the Kg/s figures are correct, but the Lbs/s figures closely match what you get on Turbofast's turbo calculator.

Click Here to see the table in a new window.


Now that we understand how air is required for the entire rev range at a selection of boost pressures, we can now start studying the compressor maps.

Draw a line across the graph at your desired Pressure Ratio (PR), and intersect that with your flow figures:

Turbo Selection

In order to plot a compressor map, the points from the table we are interested is the flow at Red Line (5500), the Flow at Max Trq (3500) and flow at a lowish rpm (2500) for my initial desired boost, i.e. 8psi, these correspond to 133 cfm, 194cfm and 258cfm at a pressure ratio(PR) of 1.54

There's several problems with this compressor; first at max rpm the compressor wont produce enough flow. secondly at max torque you want your flow to be close to the central 'island' which is the most efficient part of the map - we miss this target considerably.
So select a bigger turbo and plot your points again, this time I have also plotted the points for the other boost pressures - this way I can see if its suitable for turning up the boost in the future.

The pink line, represents the flow figures at Max torque, we can see that they are closer to the central island, also this compressor would be more efficient working at around 10-12 psi.

Using my table, I have adopted a slighty different, quicker method for plotting compressor maps for various boost pressures, you pick the four corners of the table representing the min rpm and min boost and max boost and max rpm that you are likley to ever want from the turbo (or your engine)
So from above I chose (pr 1.54,2000)=105cfm, (pr1.54,5500)=258cfm, (pr 2.09,2000)=127,(pr2.09,5500)=311, plot those four points on the map and join the dots up:

We can now see that all my desired flow figures are within the island of the compressor, if anything it's a bit on the big side and the 13g would be a better match. However, the turbine (Exhaust side) on the 13g would be far too small to flow 2.8L (5.7/2)worth of exhaust gas. Indeed, even the 15g may prove to be to small also.

Related Links

There's lots of stuff out there on the net, just be patient and keep searching.
Turbo calcs:
Turbo Compressor Calculations
How to read maps
Steal316 site, shows how to calculate and select turbos
Finding Junkyard turbos:
Dunebuggy.com, picking turbos from junkyard.
PDF showing exactly what turbo was fitted to just about every car in the world - very good
Forums, fabrication:
Good diy turbo related forums - big V8's generally, but lots of fabrication info
Compressor Maps:
Erics Turbo Maps

Garrett GT32

Ive obtained a nearly identical pair of Turbos. One is a Garrett GT3267s and the other is a Perkins badged version of the same thing, although with slightly different sizes.
Here's the info i have on them (so far):
Garrett:Cust PN:14411 9X800, AS PN:706705-0001, CHRA PN:447534, sn FL00114AGT3267S Model GT3267s ,Compressor AR .48, Turbine AR .69, Compressor wheel Minor 48.25mm (1.90')- Major 67mm (2.63')- [52 Trim] - Turbine Outlet 2.19 / 55.5mm

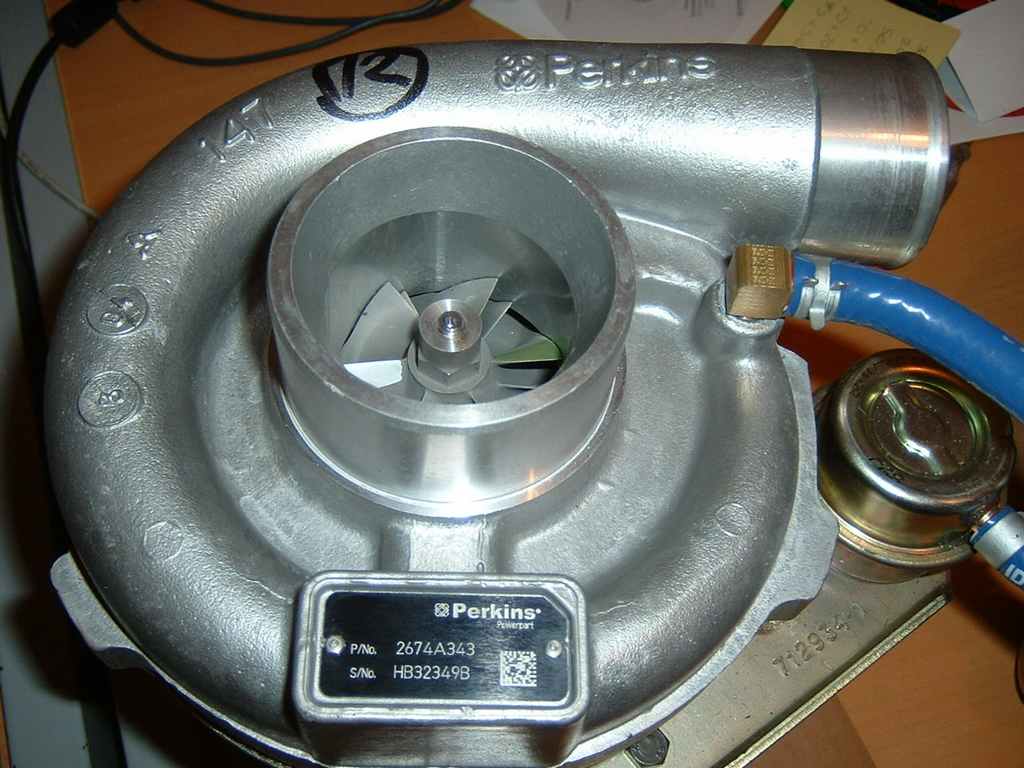

Perkins: Model 2674a343,Compressor AR ???, Turbine AR .75, Compressor wheel Minor 49.25mm (1.92')- Major 71mm (2.79')- [48 Trim] - Turbine Outlet 2.29 / 58mm (Actually a Garrett GT3271)


Comments, questions or got answers? Please use the Mez Forums to get in contact or chat about this page.
